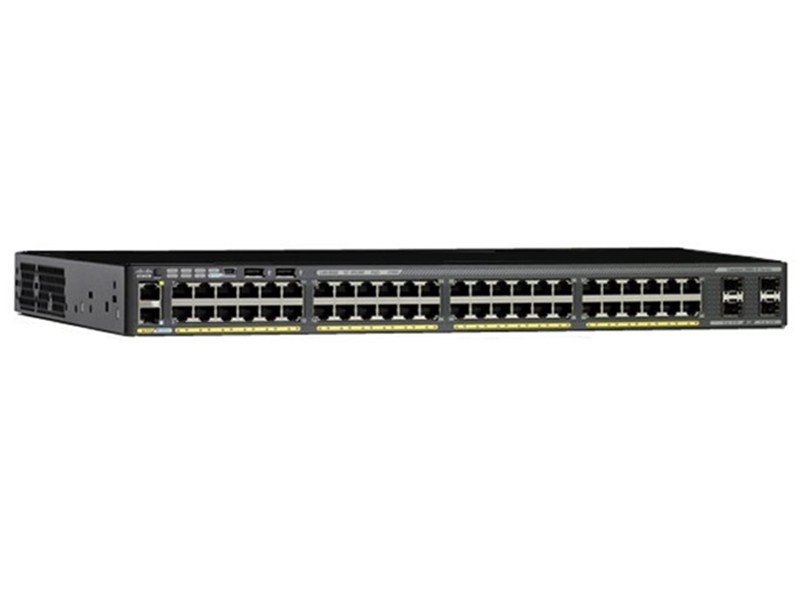

Name: Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP
SKU: 19469
Price: 1000.00 USD
Availability: InStock

Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP

$1,000.00 HT

Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP

WSC2960X48TSL

The Cisco WS-C2960X-48TS-L Catalyst 2960X Switch is a reliable and efficient networking solution for medium-sized businesses. With its 48x 1GB RJ45 ports and 4x SFP uplinks, this switch offers high-performance connectivity with a switching capacity of 216 Gbps.

Featuring an impressive forwarding rate of 107.1 Mpps, it ensures smooth data transmission even during peak network usage. The MAC Address Table Size of this switch is also noteworthy at 16,000 addresses.

With advanced features like VLAN support, Quality-of-Service (QoS), and access control lists (ACLs), the Cisco WS-C2960X-48TS-L enables secure and optimized network performance while prioritizing critical traffic efficiently.

Cisco Catalyst WS-C2960X-48TS-L: 48 Gigabit Ethernet RJ45 ports and 4 SFP uplinks. Includes a single fixed power supply and options for an external redundant power supply source (RPS2300).

Category: Switsh

Switch Cisco WS-C2960X-48TS-L Catalyst 48x 1GB RJ45, 4x 1GB SFP

Cisco WS-C2960X-48TS-L Specification

Model WS-C2960X-48TS-L

Brand Cisco

Enclosure type Rack-mountable, 1U

Ports 48 x 10/100/1000 Mbps + 4 x 1G SFP

Network management interface 10/100 Mbps Ethernet (RJ-45)

Available PoE power None

Forwarding bandwidth 108 Gbps

Maximum stacking number 8 switches

Stack bandwidth 80 Gbps

Forwarding performance 107.1 Mpps

Switching bandwidth 216 Gbps

Maximum active VLANs 1023

MAC address table size 16K (default)

CPU APM86392 600 MHz dual-core

RAM 512 MB

Flash memory 128 MB

Status indicators

Per-port: link integrity, disabled, activity, speed, full duplex; System: system, RPS, stack link status, link duplex, link speed

Console ports

USB Type-B, Ethernet (RJ-45)

Stacking cable Optional

Power redundancy Optional (PWR-RPS2300)

Voltage range (auto) 110–240 V AC

Power consumption (operational) 0.051 kVA

Width 17.5 in (44.5 cm)

Depth 11.0 in (27.9 cm)

Height 1.75 in (4.5 cm)

Package weight 20.26 lb (9.19 kg)

Device weight 9.4 lb (4.2 kg)

Rack mounting kit Optional

MTBF 476,560 hours

Compliant standards

IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS prioritization; IEEE 802.1Q VLAN; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.1ab (LLDP); IEEE 802.3ad; IEEE 802.3af; IEEE 802.3at; IEEE 802.3ah (100BASE-X single/multimode fiber only); IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, 1000BASE-T

System software Cisco IOS LAN Base

License NERGY-MGT-100-K9, EW-DO-100-DE

Key features RPS support; jumbo frames; VLANs; voice VLAN; VTPv2; CDPv2; LLDP; 802.3ad LACP; PVST/PVST+; 802.1W/802.1S; PortFast/UplinkFast; port CoS trust and override; scheduling; priority queuing; configurable CoS priority queues; weighted tail drop; DSCP transparency

Network security features

SSH, SSL, SCP; RADIUS and TACACS+; SNMPv3 with cryptography; 802.1X; 802.1X accounting/MIB; 802.1X with port security; 802.1X with voice VLAN; 802.1X guest VLAN; 802.1X VLAN assignment; 802.1X MAC authentication bypass; BPDU guard and root guard; port security; private VLAN edge; storm control; block unknown unicast and multicast; IGMP snooping; IGMP filter/throttle

Management and troubleshooting

Auto-MDIX; TDR; UDLD; IP SLA responder; Layer 2/IP traceroute; SPAN; RSPAN; Express Setup; Device Manager; Cisco Network Assistant; Smartports and Advisor; Troubleshooting Advisor; drag-and-drop Cisco IOS upgrade; IP address via DHCP; autoinstall with saved configuration; configuration replace; DHCP auto image upgrade; DHCP port-based allocation; error-disable MIB

Operating temperature (up to 1500 m / 5000 ft) 23°F to 113°F

Operating temperature (up to 3000 m / 10,000 ft) 23°F to 104°F

Short-term temperature (sea level) 23°F to 131°F

Short-term temperature (up to 1500 m / 5000 ft) 23°F to 122°F

Short-term temperature (up to 3000 m / 10,000 ft) 23°F to 113°F

Short-term temperature (up to 4000 m / 13,000 ft) 23°F to 104°F

Storage temperature (up to 4573 m / 15,000 ft) -13°F to 158°F

Operating altitude Up to 10,000 ft

Storage altitude Up to 13,000 ft

Operating relative humidity 10% to 95% non-condensing

Storage relative humidity 10% to 95% non-condensing
